Sublimation Eco Solvent Printers High Resolution For Textile
1440dpi Galaxy UD 1812LB
Feature of Galaxy Inkjet Printer UD-1812LB
| Model | UD-181LB |
| Print Head | DX5 |
| Number of Print Head | 2 Head |
| Max Printing Width | 1800mm |
| Printing Speed (m2/hr) | Draft | 2 pass 40 |
| Standard | 3 pass 25 |
| Quality | 4 pass 22 |
| High Quality | 6 pass 15 |
|
| Ink | Type | Disperse Dye |
| Color | C M Y K |
| Capacity | 1 liter |
| Ink supply system | Auto ink supply system |
| Media | Width | Max 1880mm |
| Type | Polyester |
| Auto Media Feeding System | Equipped (Max media weigh 25kgs) |
| Auto Cleaning System | Anti-clogged flash function and capping system |
| Pre-heating & Drying System | Equipped |
| Clamp | Equipped |
| Print Interface | USB 2.0 |
| Print Head Height | 2 to 6 mm Above Media Adjustable |
| Rip Software | Ultraprint, Maintop, Photoprint, Shiraz, Wasatch |
| Input Power | AC220v, 50HZ/60HZ |
| Machine Dimension | L3080 * W990 * H1260mm / 204kgs |
| Package Dimension | L9190 * W1100 * H845mm / 390kgs |
1.8m high resolution 1440DPI Sublimation printer
Wave technology and gradient feathers, YMCK KCMY special
arrangement to meet the order and from remote are the same color
overlap, the depth of low-Pass Road will not be printed, and the
gradual emergence of microwave technology to eliminate waves PASS
Road.
The Variable Sized Droplet control technology (VSDT), demand drops
automatically controlled, the output image color nuanced, rich
layers, three-dimensional realistic, more delicate highlights, more
vivid dark, more natural transition to color, shape beautiful
realistic picture perfect.
Power supplier safety
Attention: For safety of the operator and Printer, ground wire must
be connected! The printer
should be installed by qualified maintenance technician.
A. Power supply: single-phase 220V AC /50HZ. Max power: 1000W,
Print power: 100W
B. Using only the power type that the printer label identified. You
can choose 110V AC or 220V AC power supply according to your
countries or regions’ applications.
C. Connecting all equipments to a properly ground outlet to avoid
the use of sockets with those in the frequent switching between on
and off the device (such as: photocopiers, air-conditioning
systems) in the same circuit.
D. Avoid to use of wall-board switch or autotimer controlled
outlet, always turn off your printer by the power switch which is
on the right side of printer.
E. Do not use damaged or broken power wire.
F. If additional power wire has to be used, make sure the sum of
amperage of other device and the additional power device can not
exceed the rated amperage of the power supply. Do remember the sum
of amperage of other devices and the additional power wire plugged
into the wall can not exceed the wall outlet’s rated amperage of
power supply.
G. Keep your computer system away from electromagnetic interference
source(s) such as loudspeaker or wireless telephone. Do not try to
repair printer by yourself while meet problems, seeking for help
from printer maintenance technicians in time.
Please Note :
The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors
may be different along with the chnage of printheads. When printing
with serveal printers at the same time, a difference in printing
colors may exists due to a difference exist in every single printer

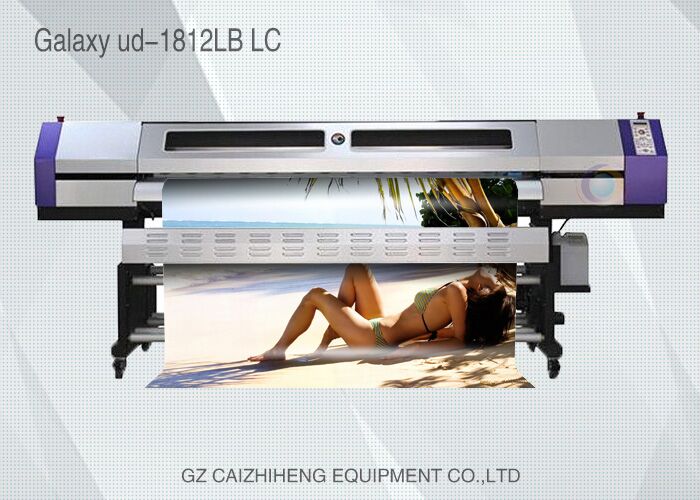

Product Photos
