3.2m Industrial Large Format Solvent Printer , Challenger 3276E
Flex Banner Printing Machine
Features:
Challenger FY-3276E solvent printer with 8 heads
Adopts SII Printek Inc. SPT510/1020/508G printhead
Ink Type: Solvent Ink / Mild Solvent Ink
Color: Double 4 Colors ( C, M, Y, K ) / 6 colors (C Y M K Lc Lm)
Capacity: 5L per Main Tank of Each Color
Ink Supply System: Low Ink Detector, Auto or Manual Ink Supply
System
Media Width : 3300mm
Type: Vinyl, Flex, Polyester, Back-lit Film, Window Film, banner
etc
| MODEL | UD-3276E |
Printhead
SII Printek Inc. | SPT510-50PL |
| Number of printhead | 6 Heads |
| Maximum print width | 3,200mm |
| Print Speed (m2/h) | Print mode | Output(m2/h) |
| Draft 2pass | 85 |
| Standand 3pass | 57 |
| Quality 4pass | 38 |
| High 5pass | 32 |
| Compensatory 6pass | 26 |
| Ink | Type: | Solvent Ink / ECO Solvent Ink |
| Color : | 6 Color (C,M,Y,K,Lc,Lm) |
| Capacity: | 1L or 5L per Main Tank of Each Color |
| Ink Supply System | Low Ink Dectector, Auto or Manual Ink Supply
System |
| Media Width | Maximum 3,300mm |
| MODEL | UD-3276E |
| Media Type | Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
| Auto Media Feeding System | Equipped (Max. Media Weight 80kg) |
| Auto Cleaning System | Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System |
| Pre-heating & Drying System | Equipped |
| Clamp | Equipped |
| Print Interface | USB 2.0 |
| Printhead Height | 2 to 6 mm from Media |
| RIP Software | Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
| Input Power | AC 220V, 50Hz/60Hz |
| Machine Dimension / N.W | L4, 786 x W930 x H1,350mm / 724KG |
| Package Dimension / G.W | L4, 980 x W1,140 x H1,640mm / 1064KG |
Advantage
1. Excellent Mechanical T Shape Frame Structure
Main bottom frame was wholly milled imported 6 meter planer type
milling machine, which error is only less than 0.05mm
2. Large Angle Suction Fan Layer
Suction fan layer angle larger, can turn angle according to the
material’s angle, and can put a large additional area of material
under heating up and drying
3. Safety And High Protection
Feeding up gear protective cover, which protect the operator or
engineer from the risk of hurt
4. High Efficiency High Quality
Multiple 3 phases constant heating system promotes ink absorption
of material, which makes printing clearer, dry faster and image
stay for longer.
5. Rail Quality Assurance
Adopt the rail; make sure the long use in printing and head carrier
moves steadily and quietly. The chain has been certified with its
quality
6. Imported AC Servo Motor System
Optional Imported AC servo motor system, the powerful motor can
keep the printing work for long time.
Our Service
1. All the machines bought from us have 12-14 months warranty. If
any spareparts broken within this period, pls send back to us and
we will repair or exchange new parts to you.
2. We give original good quality machines with well standard export
packing.We give one set of free ink(C,M,Y,K 4 bottles),original
software, and necessary parts and tools.
3. For installation,we give English operation manual.And we give
online support too.If you need,we can provide installaton video or
we can send our technician to your place to install and set for
you.

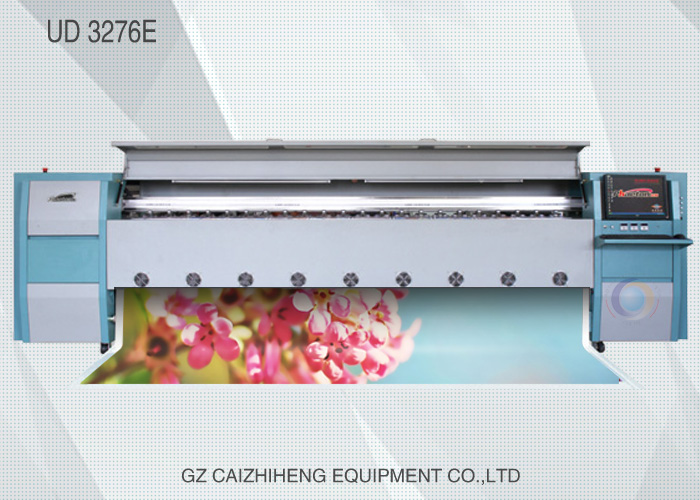

Printer Display
